- 规格:20μl质粒
- 原核抗性:氨苄青霉素Amp
- 筛选标记:遗传霉素G418
- 克隆菌株:大肠杆菌DH5α
- 备注:(NM_178642.5)
- 质粒简介: pCDNA3.1-Ano1-m-T2A-EYFP-H148Q-I152L是一个小鼠基因哺乳细胞过表达质粒。

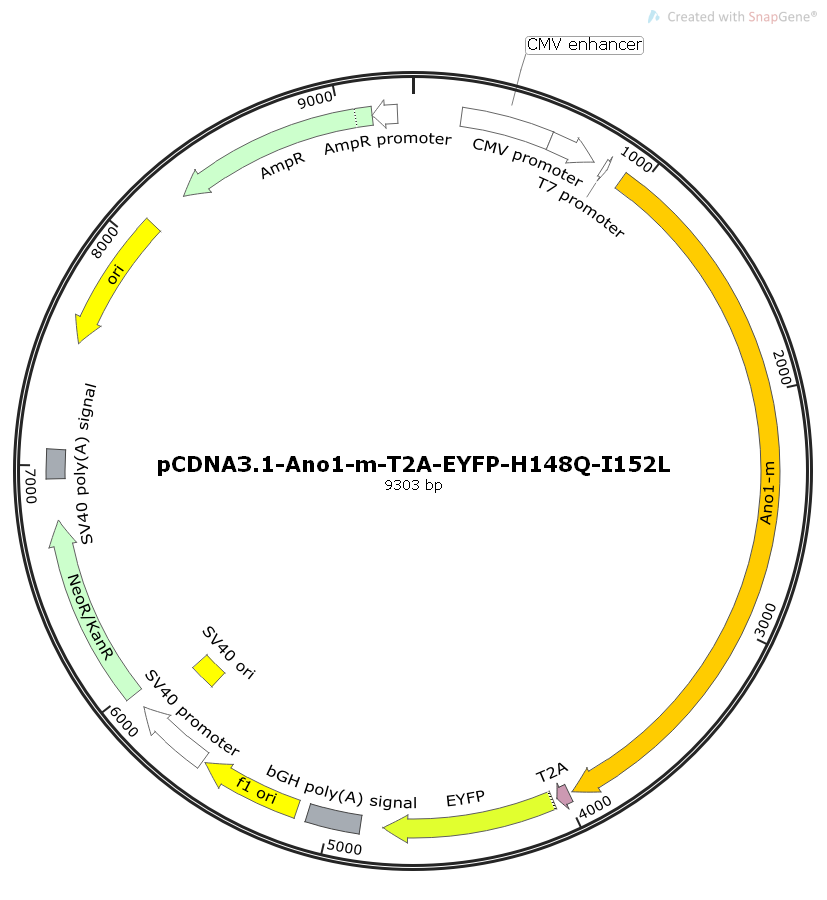

- 质粒图谱1: png/1-1G2011FI2306.png
质粒序列: 点击查看序列LOCUS Exported 9303 bp ds-DNA circular SYN 27-OCT-2017DEFINITION synthetic circular DNAFEATURES Location/Qualifierssource 1..9303/organism="synthetic DNA construct"/mol_type="other DNA"enhancer 202..581/label=CMV enhancer/note="human cytomegalovirus immediate early enhancer"promoter 582..785/label=CMV promoter/note="human cytomegalovirus (CMV) immediate earlypromoter"promoter 830..848/label=T7 promoter/note="promoter for bacteriophage T7 RNA polymerase"misc_feature 920..3970/label=Ano1-mCDS 3986..4039/codon_start=1/product="2A peptide from Thosea asigna virus capsidprotein"/label=T2A/note="Eukaryotic ribosomes fail to insert a peptide bondbetween the Gly and Pro residues, yielding separatepolypeptides."/translation="EGRGSLLTCGDVEENPGP"CDS 4058..4777/codon_start=1/product="enhanced YFP"/label=EYFP/note="mammalian codon-optimized"/translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTFGYGLQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSQNVYLMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSYQSALSKDPNEKRDHMVLLEFVTAAGITLGMDELYK"polyA_signal 4870..5094/label=bGH poly(A) signal/note="bovine growth hormone polyadenylation signal"rep_origin 5140..5568/direction=RIGHT/label=f1 ori/note="f1 bacteriophage origin of replication; arrowindicates direction of (+) strand synthesis"promoter 5582..5911/label=SV40 promoter/note="SV40 enhancer and early promoter"rep_origin 5762..5897/label=SV40 ori/note="SV40 origin of replication"CDS 5978..6772/codon_start=1/gene="aph(3')-II (or nptII)"/product="aminoglycoside phosphotransferase from Tn5"/label=NeoR/KanR/note="confers resistance to neomycin, kanamycin, and G418(Geneticin(R))"/translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRPVLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLSSHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQGLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIALATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"polyA_signal 6946..7067/label=SV40 poly(A) signal/note="SV40 polyadenylation signal"rep_origin complement(7518..8103)/direction=LEFT/label=ori/note="high-copy-number ColE1/pMB1/pBR322/pUC origin ofreplication"CDS complement(8274..9134)/codon_start=1/gene="bla"/product="beta-lactamase"/label=AmpR/note="confers resistance to ampicillin, carbenicillin, andrelated antibiotics"/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYIELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGASLIKHW"promoter complement(9135..9239)/gene="bla"/label=AmpR promoterORIGIN1 gcactctcag tacaatctgc tctgatgccg catagttaag ccagtatctg ctccctgctt61 gtgtgttgga ggtcgctgag tagtgcgcga gcaaaattta agctacaaca aggcaaggct121 tgaccgacaa ttgcatgaag aatctgctta gggttaggcg ttttgcgctg cttcgcgatg181 tacgggccag atatacgcgt tgacattgat tattgactag ttattaatag taatcaatta241 cggggtcatt agttcatagc ccatatatgg agttccgcgt tacataactt acggtaaatg301 gcccgcctgg ctgaccgccc aacgaccccc gcccattgac gtcaataatg acgtatgttc361 ccatagtaac gccaataggg actttccatt gacgtcaatg ggtggagtat ttacggtaaa421 ctgcccactt ggcagtacat caagtgtatc atatgccaag tacgccccct attgacgtca481 atgacggtaa atggcccgcc tggcattatg cccagtacat gaccttatgg gactttccta541 cttggcagta catctacgta ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt601 acatcaatgg gcgtggatag cggtttgact cacggggatt tccaagtctc caccccattg661 acgtcaatgg gagtttgttt tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca721 actccgcccc attgacgcaa atgggcggta ggcgtgtacg gtgggaggtc tatataagca781 gagctctctg gctaactaga gaacccactg cttactggct tatcgaaatt aatacgactc841 actataggga gacccaagct ggctagcgtt taaacttaag cttgcatgcc tgcaggtcga901 ctctagagga tccgccacca tgcaggacgc gcaggacagc gacatcggcc tggagggctt961 gaccccagag ggaacctctg cggaccgaga gtgccagcgg ggaccggaaa caatcgcgca1021 cgaggcacag gacgcaggaa cccccaactc agacgccacc ggggttgtgg atggggagcg1081 cgaggccacc atgagggtcc ccgagaagta ctcgacgctc ccggcggagg accgcagcgt1141 ccacatcgtg aacatctgcg ccatcgagga cctgggctac ctgccgtccg agggcacgtt1201 gctgaactct ctgtccgtgg accccgacgc cgaatgcaag tatggactat acttcaggga1261 tggcaaacgg aaggtggact acatcttggt ataccatcac aagagagcct cagggagcag1321 gactctggcc aggaggggac tacaaaatga catggtcctg gggacccgca gcgtcaggca1381 ggaccagccc cttcccggga aggggagccc tgtggatgca ggctcaccgg aagtccccat1441 ggattaccat gaagatgaca aacgcttcag acgggaggaa tatgagggca acctgttgga1501 ggcaggcctg gagttggaga atgacgagga taccaaaatc catggtgtcg ggtttgtgaa1561 gatccatgcg ccctggcatg tgctctgtag ggaagctgag tttttgaaac taaagatgcc1621 cacaaagaag gtgtaccaca tcagtgagac gcgaggcctc ctgaaaacca tcaactcggt1681 tctgcagaag atcacagacc ccatccagcc caaggtggct gagcacaggc cacagaccac1741 aaagaggctc tcctatccct tctcccggga gaagcaacac ctattcgacc tgactgacag1801 ggactctttt ttcgacagca aaacccggag cacaatagtc tatgaaatcc tgaagagaac1861 aacgtgcacc aaggccaagt acagcatggg tatcaccagc ctcctggcca atggcgtata1921 ctcagctgca taccctctgc acgatgggga ctatgagggt gacaacgttg agttcaacga1981 caggaaactc ctgtatgagg aatgggcaag ttacggagtc ttctacaaat accagcccat2041 tgacctggtc aggaaatact ttggtgagaa ggttggcctg tactttgcct ggcttggagc2101 ctacacccag atgctcatcc ctgcctcgat cgtgggtgtc attgtctttc tctatggatg2161 tgccactgtg gacgaaaaca tccccagtat ggagatgtgt gaccagagat acaacatcac2221 catgtgtcct ctgtgtgaca agacctgcag ctactggaag atgagctcag cctgtgccac2281 agcccgtgcc agtcaccttt ttgataaccc tgccaccgtc ttcttctctg tgtttatggc2341 cctctgggct gccactttca tggagcactg gaaacggaag cagatgaggc tcaactaccg2401 atgggacctc acaggcttcg aggaggagga ggaagctgtc aaggatcatc ccagagcaga2461 gtatgaagcc agagtcttag agaagtcact gagaaaagaa tccagaaaca aagagaccga2521 caaggtgaag ctgacctgga gggaccgatt cccagcctat ttcaccaatc ttgtctccat2581 catcttcatg atcgcagtga catttgcaat cgtcctcgga gttatcatct atagaatctc2641 cacagctgca gccttggcca tgaactcctc cccgtctgtg cggtccaaca tccgggttac2701 agtcacggcc accgctgtta tcatcaacct cgtggtcatc attctgctgg atgaagttta2761 cggctgcatt gccaggtggc tcaccaagat tgaggtccca aagacagaga agagctttga2821 ggagaggcta accttcaagg ccttcctgct caagtttgtg aactcttaca ctcccatctt2881 ctatgtcgcc ttcttcaaag gccggtttgt tggtcggccc ggtgactacg tgtacatctt2941 ccgctctttc cggatggagg agtgtgcccc gggcggctgc ctcatggagc tctgtatcca3001 gctgagcatc attatgctgg gcaagcagct aatccagaac aatctcttcg agattggcat3061 cccgaagatg aaaaagttca tccgctacct gaagctgcgc agacagagcc cctcagaccg3121 tgaagagtac gtgaagcgga agcagcgcta tgaggtggac ttcaacctcg aacctttcgc3181 cggcctcacg cccgagtaca tggaaatgat cattcagttc ggctttgtca ccctgtttgt3241 tgcgtccttc cctctggctc cactcttcgc cctgctaaac aacatcattg agatccgcct3301 ggatgccaaa aagtttgtca ccgagctacg gaggccagta gccatcagag ccaaagacat3361 cggcatctgg tataacatcc tcagaggtgt tgggaagctg gctgtcatca ttaatgcctt3421 tgtgatctcc ttcacgtctg acttcatccc tcgcctggtg tacctctaca tgtacagtca3481 gaatgggacc atgcacggct tcgtcaatca cacgctctct tccttcaatg tcagcgactt3541 ccagaatggc acagcaccca atgacccact ggacctgggc tatgaggttc agatctgcag3601 gtataaagat taccgggaac ccccatggtc agaacacaag tatgacatct ccaaagactt3661 ctgggctgtc ctggccgccc gactggcatt tgtcattgtc ttccagaacc tggtgatgtt3721 catgagtgac tttgtggact gggtgatccc tgatatcccc aaagacatca gccagcagat3781 ccacaaagag aaggttctca tggtggagct gtttatgcgt gaggagcagg gcaagcagca3841 gctactggac acatggatgg agaaggagaa gccaagggat gtgccttgta acaaccacag3901 ccccacaacc
