• 规格：20μl质粒

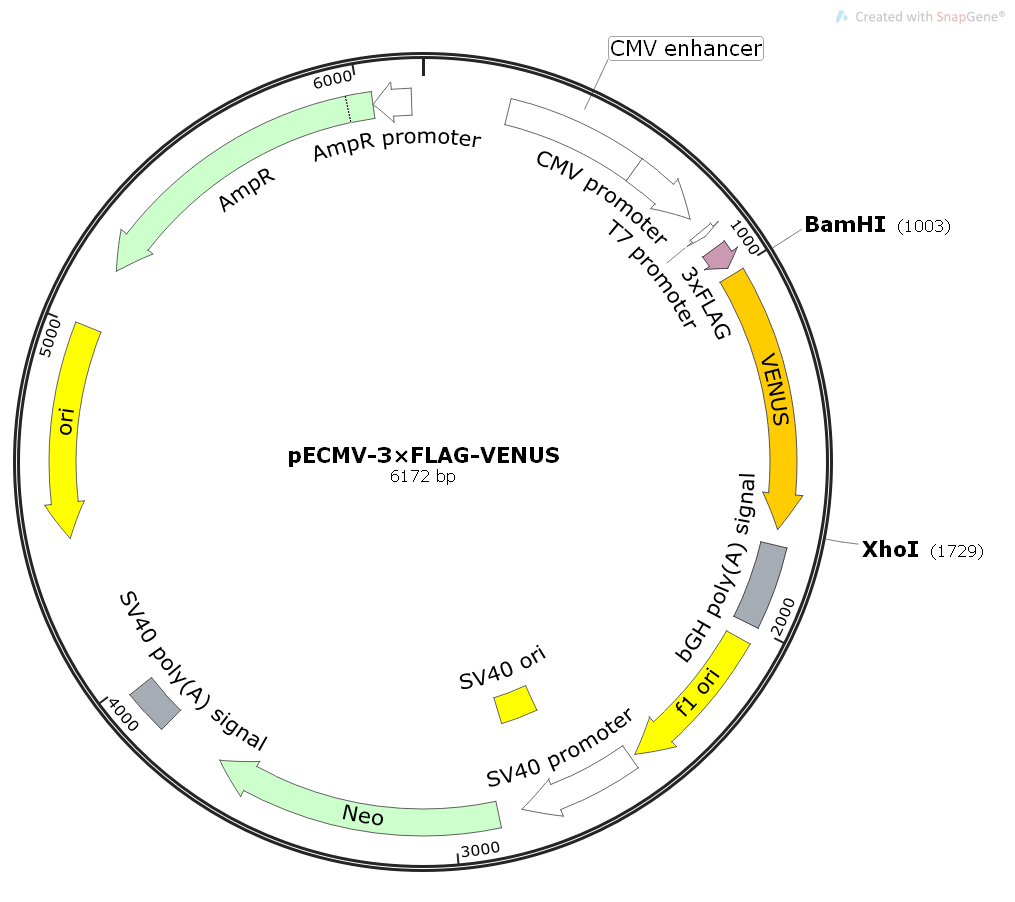

• 质粒图谱1： png/1-1F92Q6251V91.png

质粒序列： 点击查看序列

LOCUS       Exported                6172 bp ds-DNA     circular SYN 28-SEP-2017

DEFINITION  synthetic circular DNA

ACCESSION   .

VERSION     .

KEYWORDS    pECMV-3×FLAG-VENUS

SOURCE      synthetic DNA construct

  ORGANISM  synthetic DNA construct

REFERENCE   1  (bases 1 to 6172)

  AUTHORS   .

  TITLE     Direct Submission

  JOURNAL   Exported Sep 28, 2017 from MiaoLingPlasmid

            http://www.fenghbio.cn

FEATURES             Location/Qualifiers

     source          1..6172

                     /organism="synthetic DNA construct"

                     /mol_type="other DNA"

     enhancer        235..614

                     /label=CMV enhancer

                     /note="human cytomegalovirus immediate early enhancer"

     promoter        615..818

                     /label=CMV promoter

                     /note="human cytomegalovirus (CMV) immediate early

                     promoter"

     promoter        863..881

                     /label=T7 promoter

                     /note="promoter for bacteriophage T7 RNA polymerase"

     CDS             922..987

                     /codon_start=1

                     /product="three tandem FLAG(R) epitope tags, followed by an

                     enterokinase cleavage site"

                     /label=3xFLAG

                     /translation="DYKDHDGDYKDHDIDYKDDDDK"

     CDS             1009..1728

                     /codon_start=1

                     /label=VENUS

                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL

                     KLICTTGKLPVPWPTLVTTLGYGLQCFARYPDHMKQHDFFKSAMPEGYVQERTIFFKDD

                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYITADKQKNGIK

                     ANFKIRHNIEDGGVQLADHYQQNTPIGDGPVLLPDNHYLSYQSALSKDPNEKRDHMVLL

                     EFVTAAGITLGMDELYK"

     polyA_signal    1772..1996

                     /label=bGH poly(A) signal

                     /note="bovine growth hormone polyadenylation signal"

     rep_origin      2042..2470

                     /direction=RIGHT

                     /label=f1 ori

                     /note="f1 bacteriophage origin of replication; arrow

                     indicates direction of (+) strand synthesis"

     promoter        2484..2813

                     /label=SV40 promoter

                     /note="SV40 enhancer and early promoter"

     rep_origin      2664..2799

                     /label=SV40 ori

                     /note="SV40 origin of replication"

     CDS             2880..3674

                     /codon_start=1

                     /gene="aph(3')-II (or nptII)"

                     /product="aminoglycoside phosphotransferase from Tn5"

                     /label=Neo

                     /note="confers resistance to neomycin, kanamycin, and G418

                     (Geneticin(R))"

                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP

                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS

                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ

                     GLAPAELFARLKARMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA

                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"

     polyA_signal    3848..3969

                     /label=SV40 poly(A) signal

                     /note="SV40 polyadenylation signal"

     rep_origin      complement(4420..5005)

                     /direction=LEFT

                     /label=ori

                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of

                     replication"

     CDS             complement(5176..6036)

                     /codon_start=1

                     /gene="bla"

                     /product="beta-lactamase"

                     /label=AmpR

                     /note="confers resistance to ampicillin, carbenicillin, and

                     related antibiotics"

                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI

                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS

                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW

                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA

                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS

                     LIKHW"

     promoter        complement(6037..6141)

                     /gene="bla"

                     /label=AmpR promoter

ORIGIN

        1 gacggatcgg gagatctccc gatcccctat ggtgcactct cagtacaatc tgctctgatg

       61 ccgcatagtt aagccagtat ctgctccctg cttgtgtgtt ggaggtcgct gagtagtgcg

      121 cgagcaaaat ttaagctaca acaaggcaag gcttgaccga caattgcatg aagaatctgc

      181 ttagggttag gcgttttgcg ctgcttcgcg atgtacgggc cagatatacg cgttgacatt

      241 gattattgac tagttattaa tagtaatcaa ttacggggtc attagttcat agcccatata

      301 tggagttccg cgttacataa cttacggtaa atggcccgcc tggctgaccg cccaacgacc

      361 cccgcccatt gacgtcaata atgacgtatg ttcccatagt aacgccaata gggactttcc

      421 attgacgtca atgggtggag tatttacggt aaactgccca cttggcagta catcaagtgt

      481 atcatatgcc aagtacgccc cctattgacg tcaatgacgg taaatggccc gcctggcatt

      541 atgcccagta catgacctta tgggactttc ctacttggca gtacatctac gtattagtca

      601 tcgctattac catggtgatg cggttttggc agtacatcaa tgggcgtgga tagcggtttg

      661 actcacgggg atttccaagt ctccacccca ttgacgtcaa tgggagtttg ttttggcacc

      721 aaaatcaacg ggactttcca aaatgtcgta acaactccgc cccattgacg caaatgggcg

      781 gtaggcgtgt acggtgggag gtctatataa gcagagctct ctggctaact agagaaccca

      841 ctgcttactg gcttatcgaa attaatacga ctcactatag ggagacccaa gctggctagc

      901 gtttaaactt aagccaccat ggactacaaa gaccatgacg gtgattataa agatcatgac

      961 atcgactaca aggatgacga tgacaagctt ggtaccgagc tcggatccat ggtgtccaag

     1021 ggcgaggagc tgttcaccgg ggtggtgccc atcctggtcg agctggacgg cgacgtaaac

     1081 ggccacaagt tcagcgtgtc cggcgagggc gagggcgatg ccacctacgg caagctgacc

     1141 ctgaagctga tctgcaccac cggcaagctg cccgtgccct ggcccaccct cgtgaccacc

     1201 ctgggctacg gcctgcagtg cttcgcccgc taccccgacc acatgaagca gcacgacttc

     1261 ttcaagtccg ccatgcccga aggctacgtc caggagcgca ccatcttctt caaggacgac

     1321 ggcaactaca agacccgcgc cgaggtgaag ttcgagggcg acaccctggt gaaccgcatc

     1381 gagctgaagg gcatcgactt caaggaggac ggcaacatcc tggggcacaa gctggagtac

     1441 aactacaaca gccacaacgt ctatatcacc gccgacaagc agaagaacgg catcaaggcc

     1501 aacttcaaga tccgccacaa catcgaggac ggcggcgtgc agctcgccga ccactaccag

     1561 cagaacaccc ccatcggcga cggccccgtg ctgctgcccg acaaccacta cctgagctac

     1621 cagtccgccc tgagcaaaga ccccaacgag aagcgcgatc acatggtcct gctggagttc

     1681 gtgaccgccg ccgggatcac tctcggcatg gacgagctgt acaagtgact cgagtctaga

     1741 gggcccgttt aaacccgctg atcagcctcg actgtgcctt ctagttgcca gccatctgtt

     1801 gtttgcccct cccccgtgcc ttccttgacc ctggaaggtg ccactcccac tgtcctttcc

     1861 taataaaatg aggaaattgc atcgcattgt ctgagtaggt gtcattctat tctggggggt

     1921 ggggtggggc aggacagcaa gggggaggat tgggaagaca atagcaggca tgctggggat

     1981 gcggtgggct ctatggcttc tgaggcggaa agaaccagct ggggctctag ggggtatccc

     2041 cacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc

     2101 gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc

     2161 acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt

     2221 agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc acgtagtggg

     2281 ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt

     2341 ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc ttttgattta

     2401 taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt

     2461 aacgcgaatt aattctgtgg aatgtgtgtc agttagggtg tggaaagtcc ccaggctccc

     2521 cagcaggcag aagtatgcaa agcatgcatc tcaattagtc agcaaccagg tgtggaaagt

     2581 ccccaggctc cccagcaggc agaagtatgc aaagcatgca tctcaattag tcagcaacca

     2641 tagtcccgcc cctaactccg cccatcccgc ccctaactcc gcccagttcc gcccattctc

     2701 cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc tctgcctctg

     2761 agctattcca gaagtagtga ggaggctttt ttggaggcct aggcttttgc aaaaagctcc

     2821 cgggagcttg tatatccatt ttcggatctg atcaagagac aggatgagga tcgtttcgca

     2881 tgattgaaca agatggattg cacgcaggtt ctccggccgc ttgggtggag aggctattcg

     2941 gctatgactg ggcacaacag acaatcggct gctctgatgc cgccgtgttc cggctgtcag

     3001 cgcaggggcg cccggttctt tttgtcaaga ccgacctgtc cggtgccctg aatgaactgc

     3061 aggacgaggc agcgcggcta tcgtggctgg ccacgacggg cgttccttgc gcagctgtgc

     3121 tcgacgttgt cactgaagcg ggaagggact ggctgctatt gggcgaagtg ccggggcagg

     3181 atctcctgtc atctcacctt gctcctgccg agaaagtatc catcatggct gatgcaatgc

     3241 ggcggctgca tacgcttgat ccggctacct gcccattcga ccaccaagcg aaacatcgca

     3301 tcgagcgagc acgtactcgg atggaagccg gtcttgtcga tcaggatgat ctggacgaag

     3361 agcatcaggg gctcgcgcca gccgaactgt tcgccaggct caaggcgcgc atgcccgacg

     3421 gcgaggatct cgtcgtgacc catggcgatg cctgcttgcc gaatatcatg gtggaaaatg

     3481 gccgcttttc tggattcatc gactgtggcc ggctgggtgt ggcggaccgc tatcaggaca

     3541 tagcgttggc tacccgtgat attgctgaag agcttggcgg cgaatgggct gaccgcttcc

     3601 tcgtgcttta cggtatcgcc gctcccgatt cgcagcgcat cgccttctat cgccttcttg

     3661 acgagttctt ctgagcggga ctctggggtt cgaaatgacc gaccaagcga cgcccaacct

     3721 gccatcacga gatttcgatt ccaccgccgc cttctatgaa aggttgggct tcggaatcgt

     3781 tttccgggac gccggctgga tgatcctcca gcgcggggat ctcatgctgg agttcttcgc

     3841 ccaccccaac ttgtttattg cagcttataa tggttacaaa taaagcaata gcatcacaaa
